Live 3D
Open doors and drawers to check the layout.
Enter your dimensions, refine the layout in 3D and share the parts list with your carpenter.
Choose a template and set your dimensions.
The part list updates as you make changes.
Send the cut list or DXF files to your workshop.

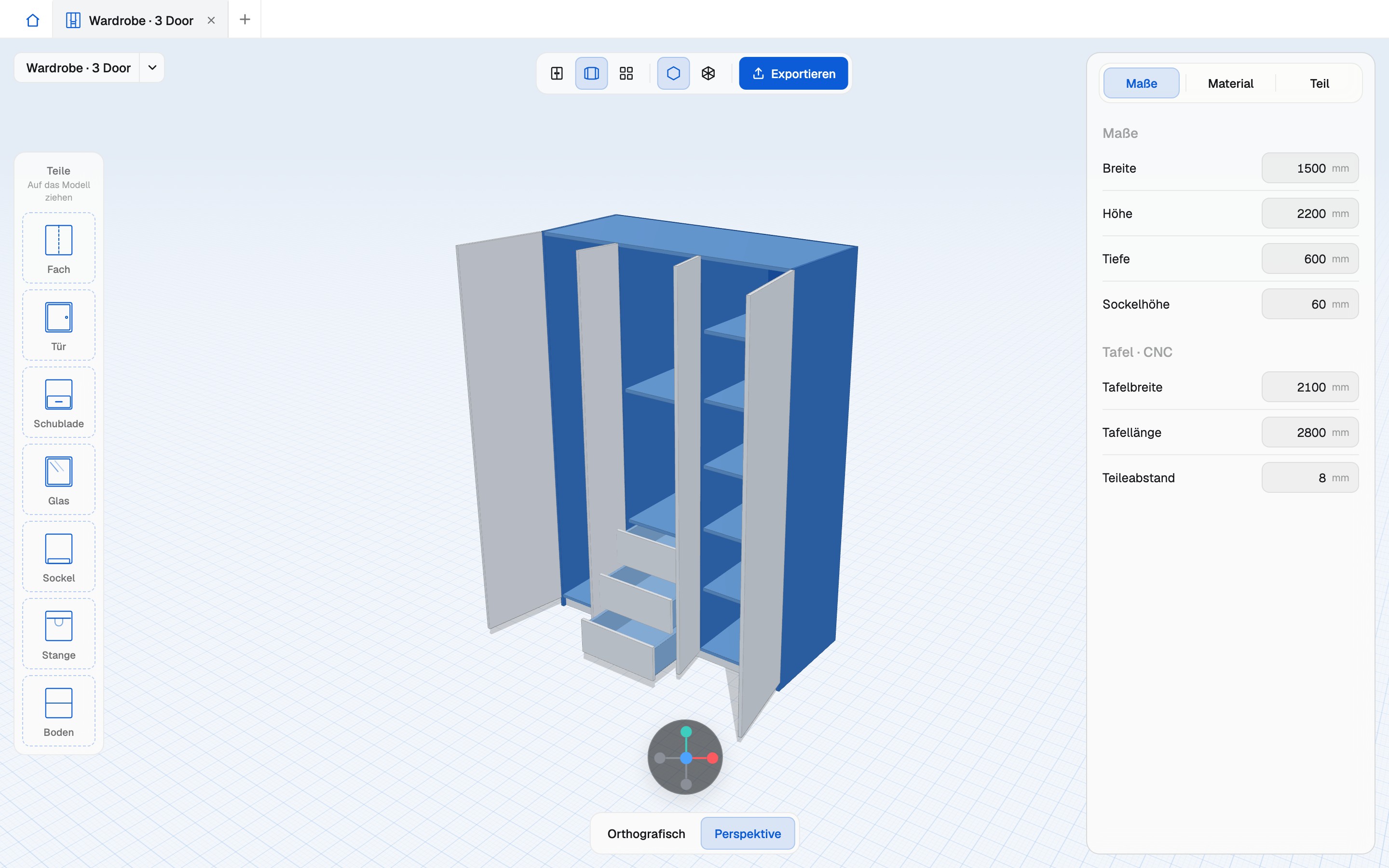

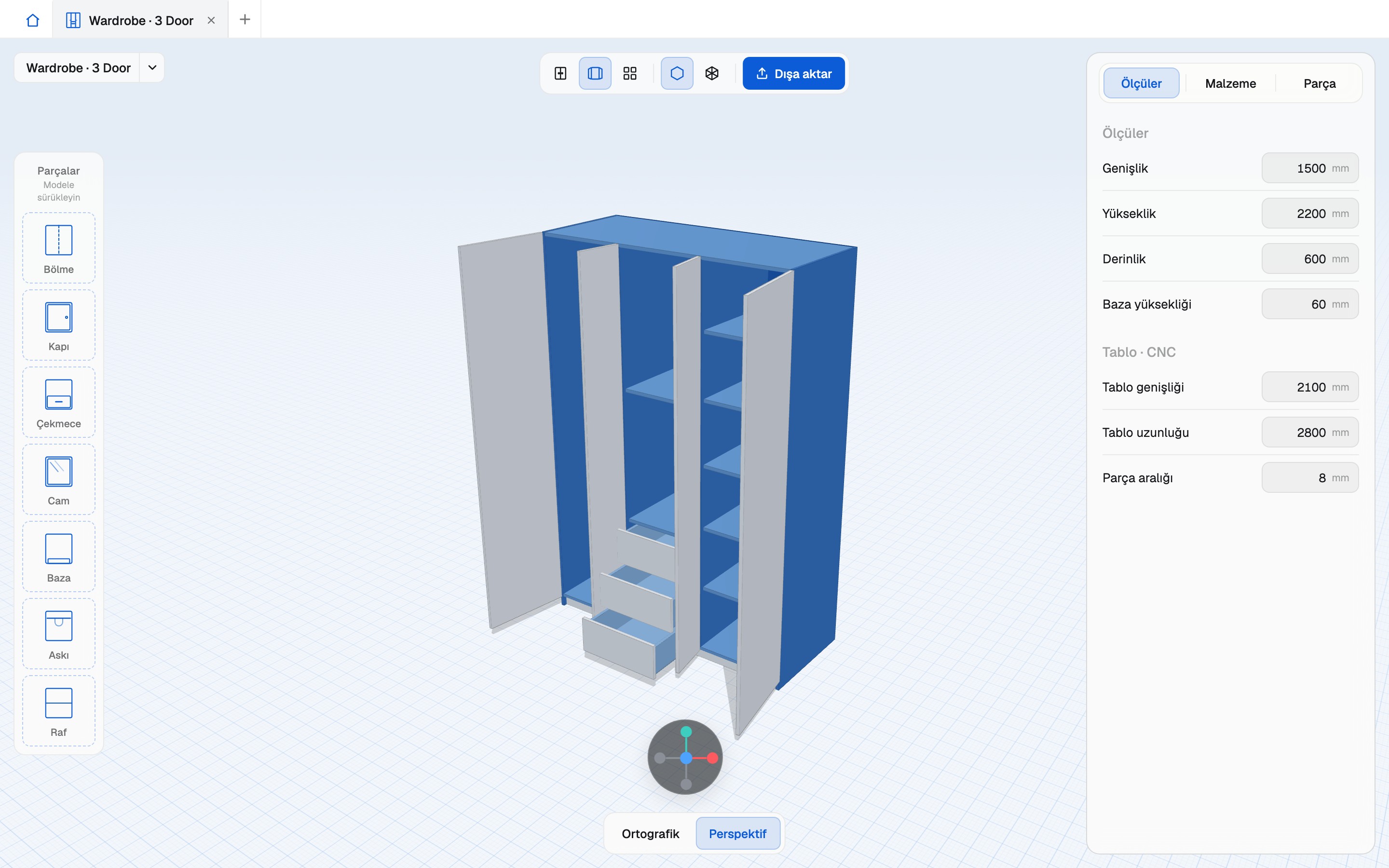

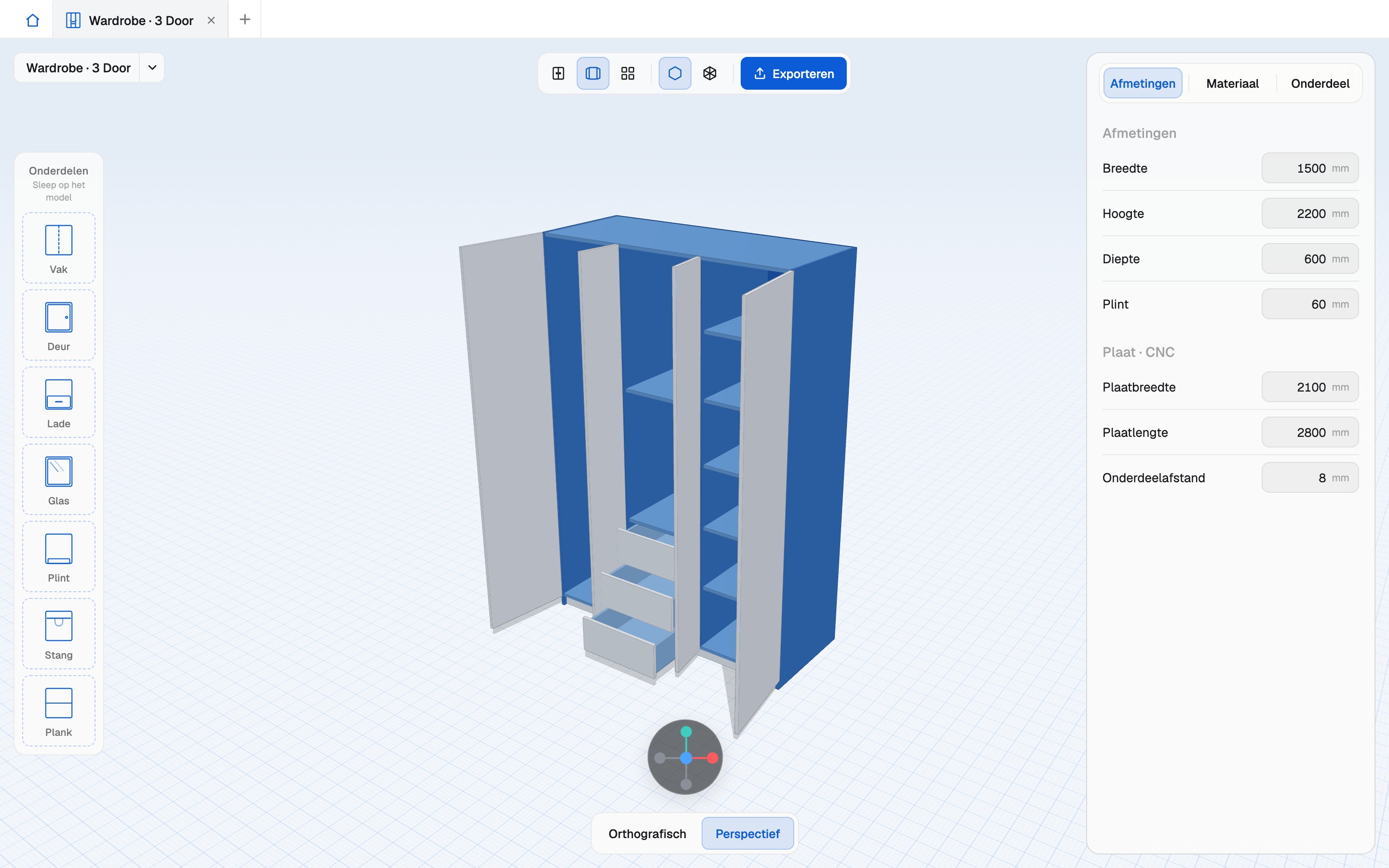

Open doors and drawers to check the layout.
See how the parts fit on a CNC sheet.
| Part | Size (mm) | Qty |
|---|---|---|
| Side panel | 2182 × 600 × 18 | 1 |
| Top panel | 1470 × 600 × 18 | 1 |
| Divider | 2104 × 600 × 18 | 2 |
| Shelf | 466 × 580 × 18 | 8 |
Take part sizes and quantities to the workshop.
| Hardware | Qty |
|---|---|
| Hinge mounting plate (32 mm centres) | 14 |
| Ø15 mm cam connector + dowel | 16 |
| Shelf support pin (5 mm) | 32 |
| Drawer runner (pair, soft-close) | 3 |
Count the fittings you need to order.
Start with Bench. Pro adds more AI chat credits and nested DXF export.
